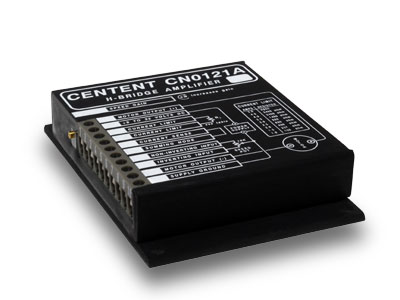

CN0121

Linear Amplifier
4 Quadrant Operation
IR Compensation
5 Amps, 32 Volts

The CN0121 is a 4 quadrant (bi-directional) speed control designed for use with low voltage DC permanent magnet motors. Motor speed can be regulated to a 2% accuracy over a 50 to 1 speed range. The CN0121 will maintain motor speed whether the motor is driving the load or is being overdriven by it.

The CN0121 features inverting and non-inverting inputs and a fixed gain of 28. A 1 volt differential input voltage will drive your motor to full speed in either direction when used with a 28 volt power supply.

Maximum motor current can be limited to any value between 0 to 5 Amps using an external ¼ watt resistor. This protects your motor from damage should it be stalled.

The CN0121 has multi-turn trimpot for speed regulation adjustment. IR compensation allows motor and wiring resistance to be trimmed out for accurate speed regulation.

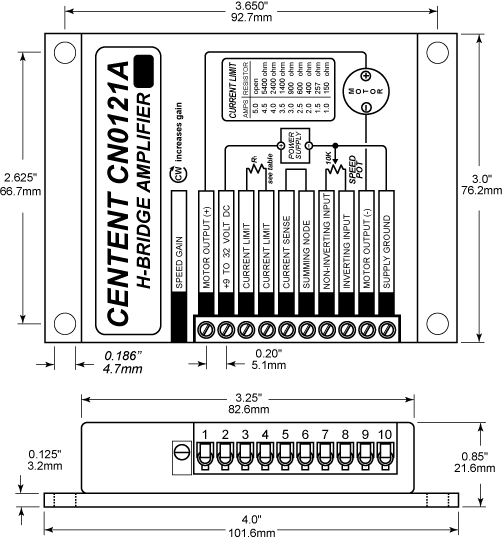

CN0121 Diagram

Specifications



Power Supply Voltage: 9 VDC to 32 VDC

Current: 0 to 5 Amps

Amplifier Type: H Bridge Linear Amplifier

Regulation: +/- 2%

Power Dissipation: 150 Watts (max)

Operating Temperature: -40 to 70 Deg C
(-40 to 158 Deg F)

Weight: 12 Oz (340.2 g)

Size: 4" X 3" X .85"
(101.6mm X 76.2mm X 21.6mm)

Operator's Manual

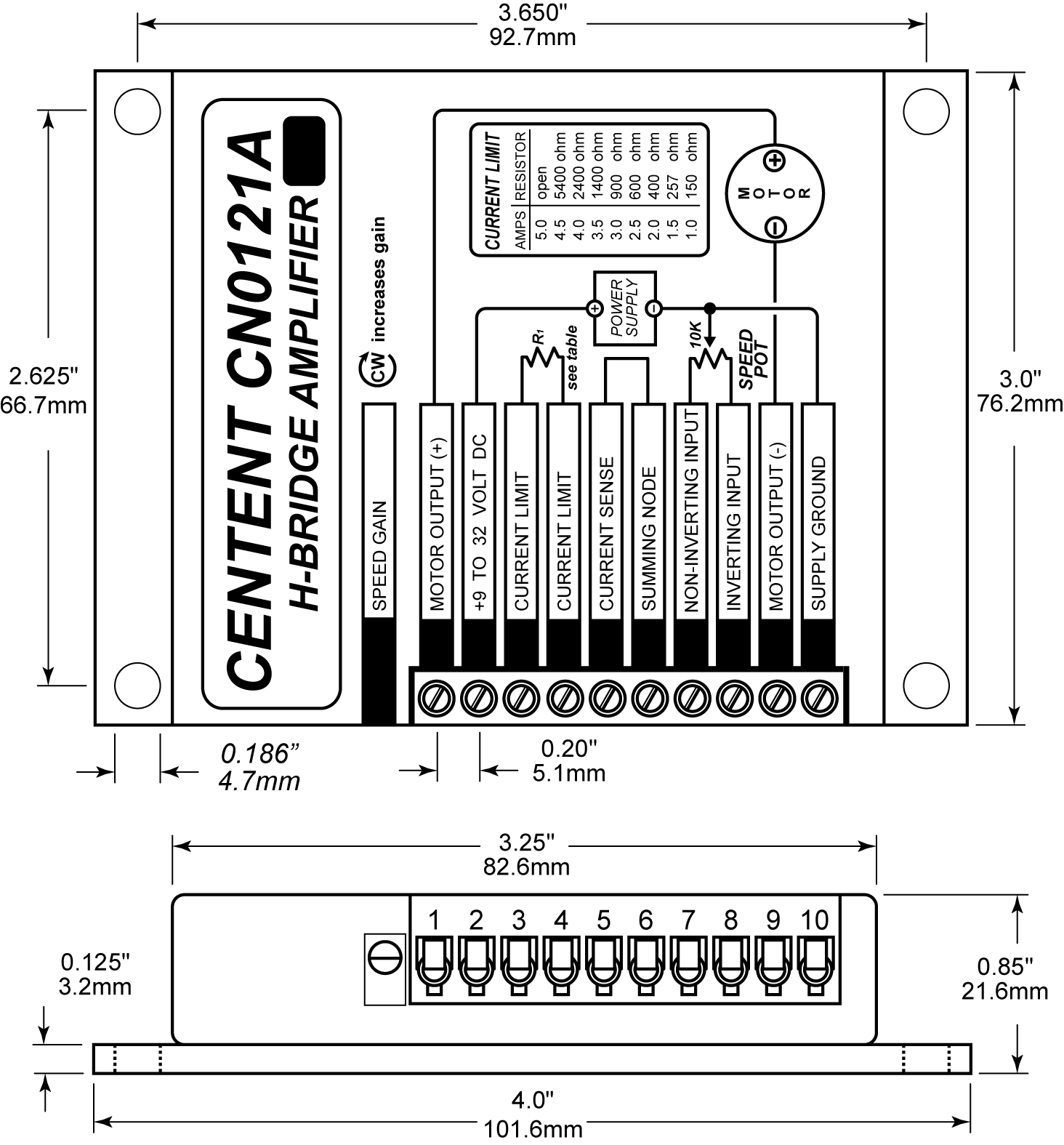

Large Drawing
