Please note that any given CN0165 comes with 8 user selectable resolutions that are factory set out of a possible 21. Therefore if you decide to order from us, we would need to know which resolution(s) you require. The standard resolutions are 1, 2, 5, 10, 25, 50, 125 and 250 microsteps/full-step.

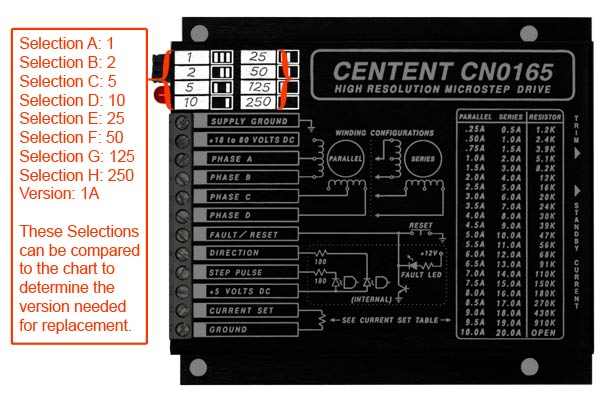

If this is a replacement part, you can find the resolutions marked as eight numbers on the face of the driver in eight white fields as seen in the picture below.
We have a wide selection of premade CN0165 resolutions available. If you are purchasing a new control or replacing an old one, this table can help you select the control you want.
Selection A | Selection B | Selection C | Selection D | Selection E | Selection F | Selection G | Selection H | Version |
1 | 2 | 4 | 5 | 8 | 10 | 16 | 20 | 4C |
1 | 2 | 5 | 10 | 25 | 50 | 125 | 250 | 1A |
1 | 2 | 10 | 20 | 25 | 40 | 50 | 80 | 2C |
1 | 2 | 10 | 20 | 25 | 50 | 100 | 200 | 3C |
2 | 4 | 5 | 8 | 10 | 16 | 20 | 25 | 5C |
2 | 4 | 8 | 16 | 32 | 64 | 128 | 256 | 1B |
4 | 8 | 10 | 16 | 20 | 32 | 64 | 80 | 1D |
50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 2A |
200 | 100 | 80 | 50 | 25 | 20 | 10 | 16 | 1C |
We can expedite your order if you provide to us the version you require (i.e. CN0165-1A). If you do not find the resolutions you require, you may look at page 13 of the operator's manual to see the available combinations.
Operator's Manual - Chart of available resolutions
