HSK-1

Improves Drive Dissipation
Includes:

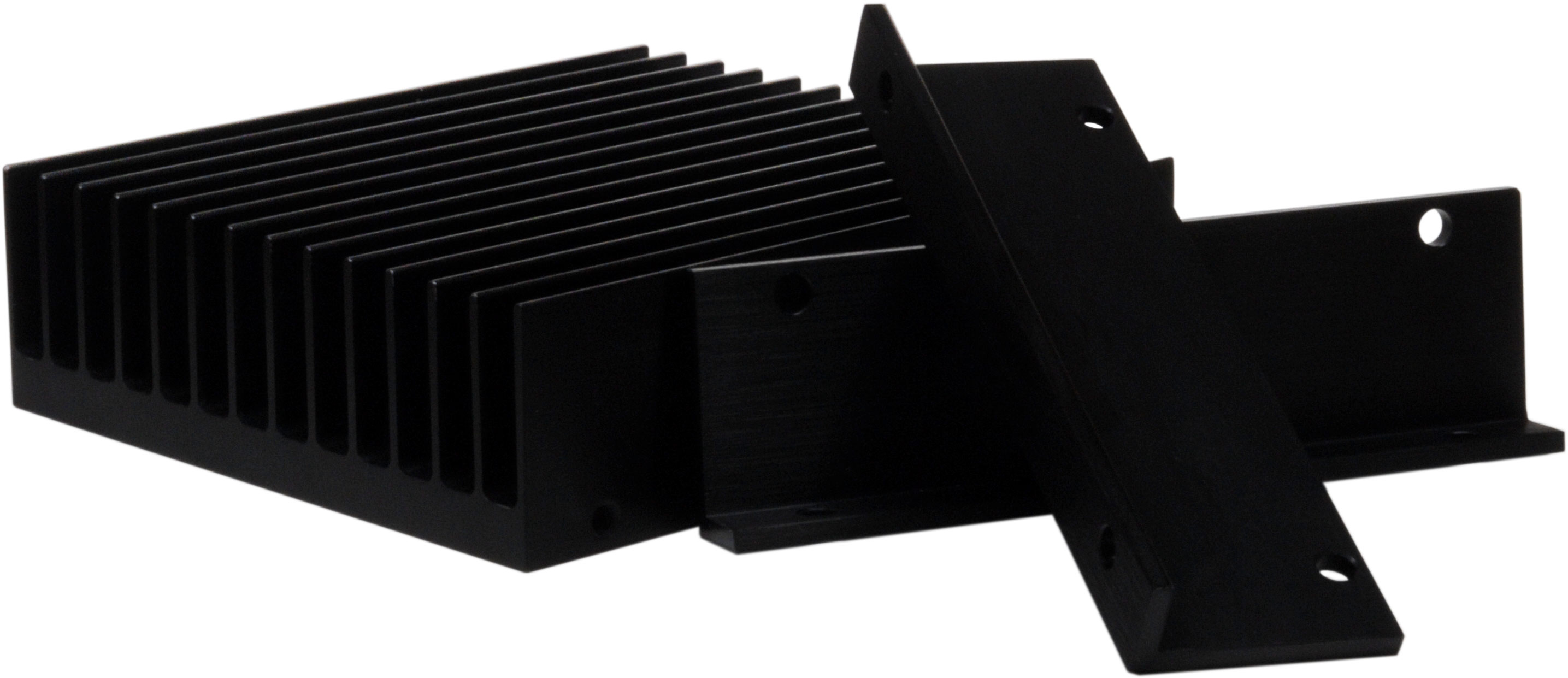

Heat Sink
Mounting Rails
Mounting Screws



The Centent HSK-1 Heat Sink Kit is intended for use with CN0142 /CN0143, CN0152 / CN0153, CN0162, CN0165 and CN0182 motor drives. This accessory will allow drives to reach their full rated power while maintaining temperatures within the rated limits.

The heatsink has pre-drilled, tapped holes that match these drive's mounting hole patterns. Mounting rails are provided to easily attach the heatsink to a panel. Hardware is provided for mounting the drive and the side rails to the heatsink.

For best performance, the heatsink should be mounted on a vertical panel with the heatsink fins oriented vertically as well. Heatsink thermal grease should be applied between the drive and the heatsink. Forced air circulation should be used if the assembly will be located inside an enclosed panel.

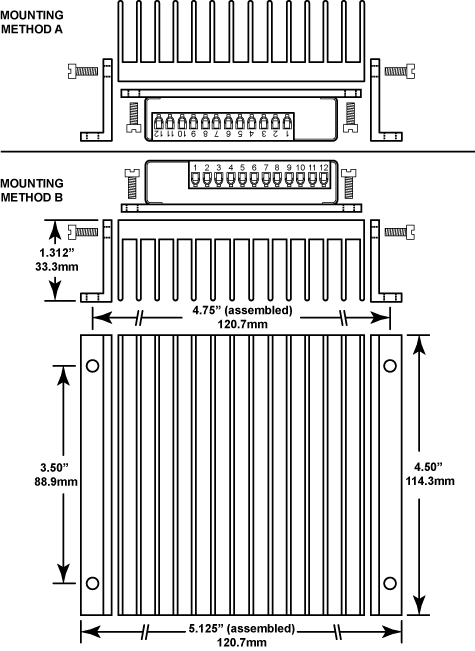

HSK-1 Diagram

Specifications



Power Dissipation: 50 Watts (max)

Material: Aluminum, Black Anodized

Weight: 20 Oz

Size: 5.125" X 4.5" X 1.3125"
(120.7mm X 114.3mm X 33.3mm)
