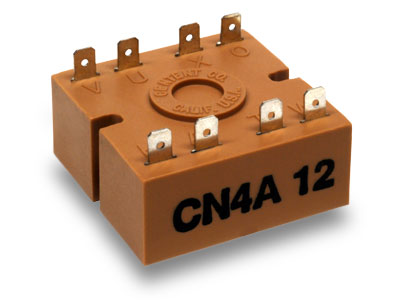

CN4A12 CN4A24

SCR Drive
Back EMF Compensated
4 Amps, 24 VAC
Single Quadrant



The CN4A12 and CN4A24 are silicon controlled rectifier (SCR) type speed controls for use with 12 / 24 VDC permanent magnet motors. A 12 / 24 VAC secondary transformer and a 5 Kohm potentiometer are all that's required to operate the CN4A12 / 24 with your motor.

The CN4A12 / 24 will regulate the motor speed to +/- 10% accuracy over a 25 to 1 speed range. The drive is a single quadrant (single direction) speed control.

DC permanent magnet motors having stall currents of 4 Amps or less are suitable for use with the CN4A12 / 24.

An epoxy encapsulated package using push-on type crimp wire connectors make for a reliable and simple to use speed control.

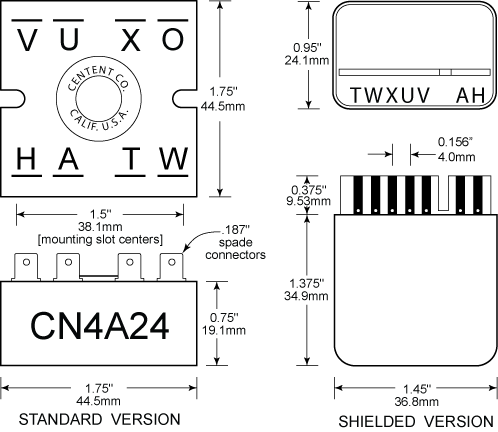

CN04A12 Diagram

Specifications



Power Supply Voltage: 12 / 24 VAC, 60 Hz

Current: 0 to 4 Amps

Amplifier Type: SCR

Power Dissipation: 10 Watts (max)

Operating Temperature: -40 to 70 Deg C
(-40 to 158 Deg F)

Weight: 3.5 Oz (99.2 g)

Size: 1.75" X 1.75" X .75"
(44.5mm X 44.5mm X 19.1mm)

Made in USA

Operator's Manual

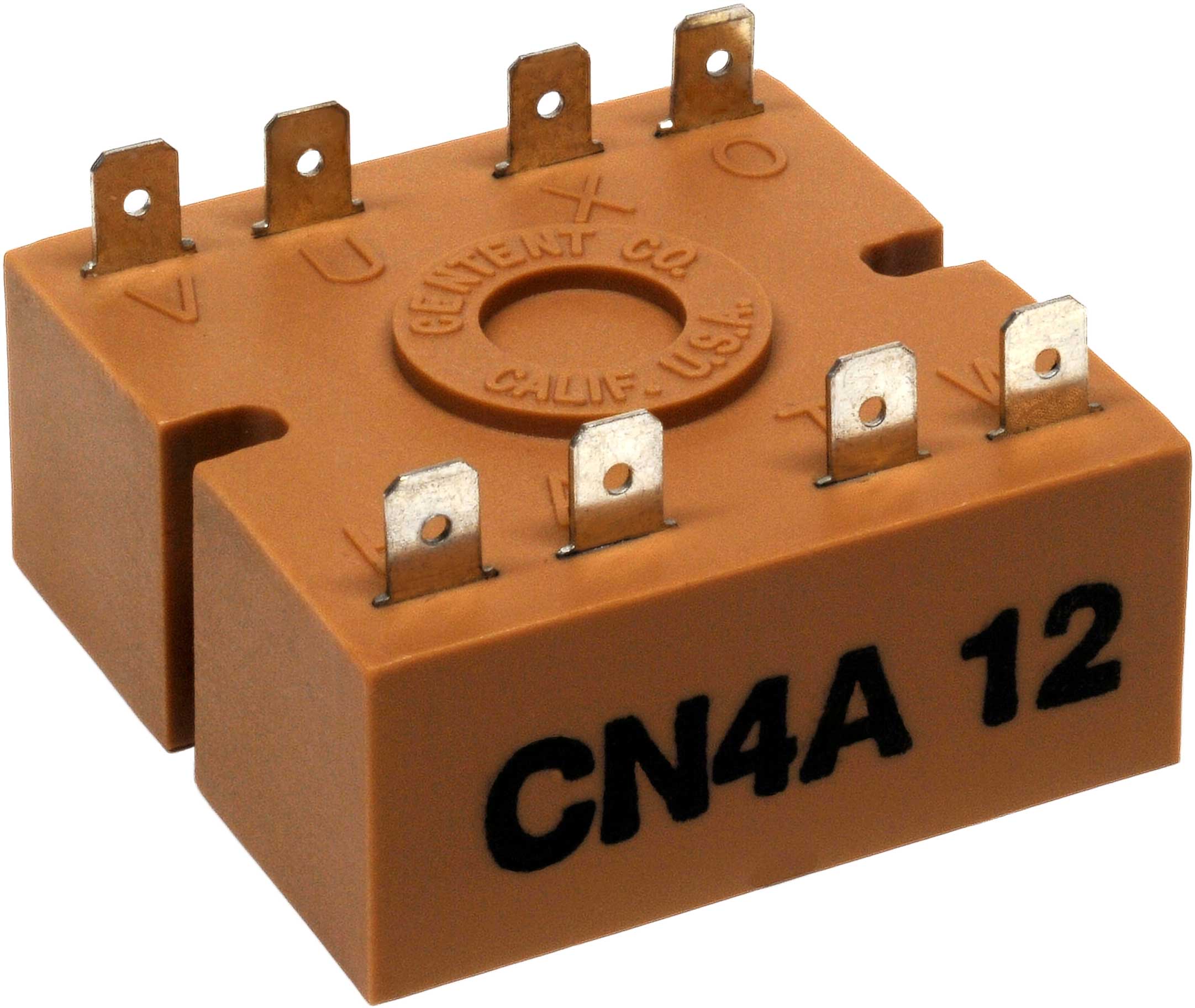

Large Drawing
