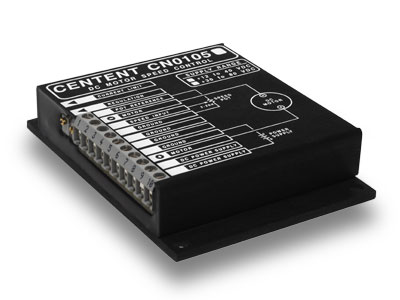

CN0105

PWM Speed Control
IR Compensated
10 Amps, 80 Volts



The CN0105 is a single quadrant (unidirectional) pulse width modulated speed control for permanent magnet DC motors. IR compensation is used for feedback control, for a speed control accuracy of +/- 2%.

Trimpots are provided for speed regulation and current limit adjustment. Current limit is adjustable over a 0 to 10 amp range. Motor speed can be set via an external potentiometer or a 0 to 5 VDC control voltage.

Robust circuit design and an epoxy encapsulated package contributes to a reliable and rugged DC motor speed control.

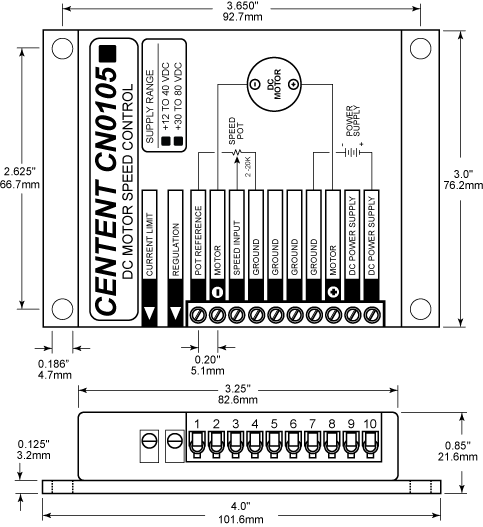

CN0105 Diagram

Specifications



Power Supply Voltage (A Version): 12 VDC to 40 VDC

Power Supply Voltage (B Version): 30 VDC to 80 VDC

Current: 0 to 10 Amps

Switching Frequency: 15 kHz

Regulation: +/- 2%

Power Dissipation: 30 Watts (max)

Operating Temperature -40 to 70 Deg C
(-40 to 158 Deg F)

Weight: 12 Oz (340.2 g)

Size: 4" X 3" X .85"
(101.6mm X 76.2mm X 21.6mm)

Operator's Manual

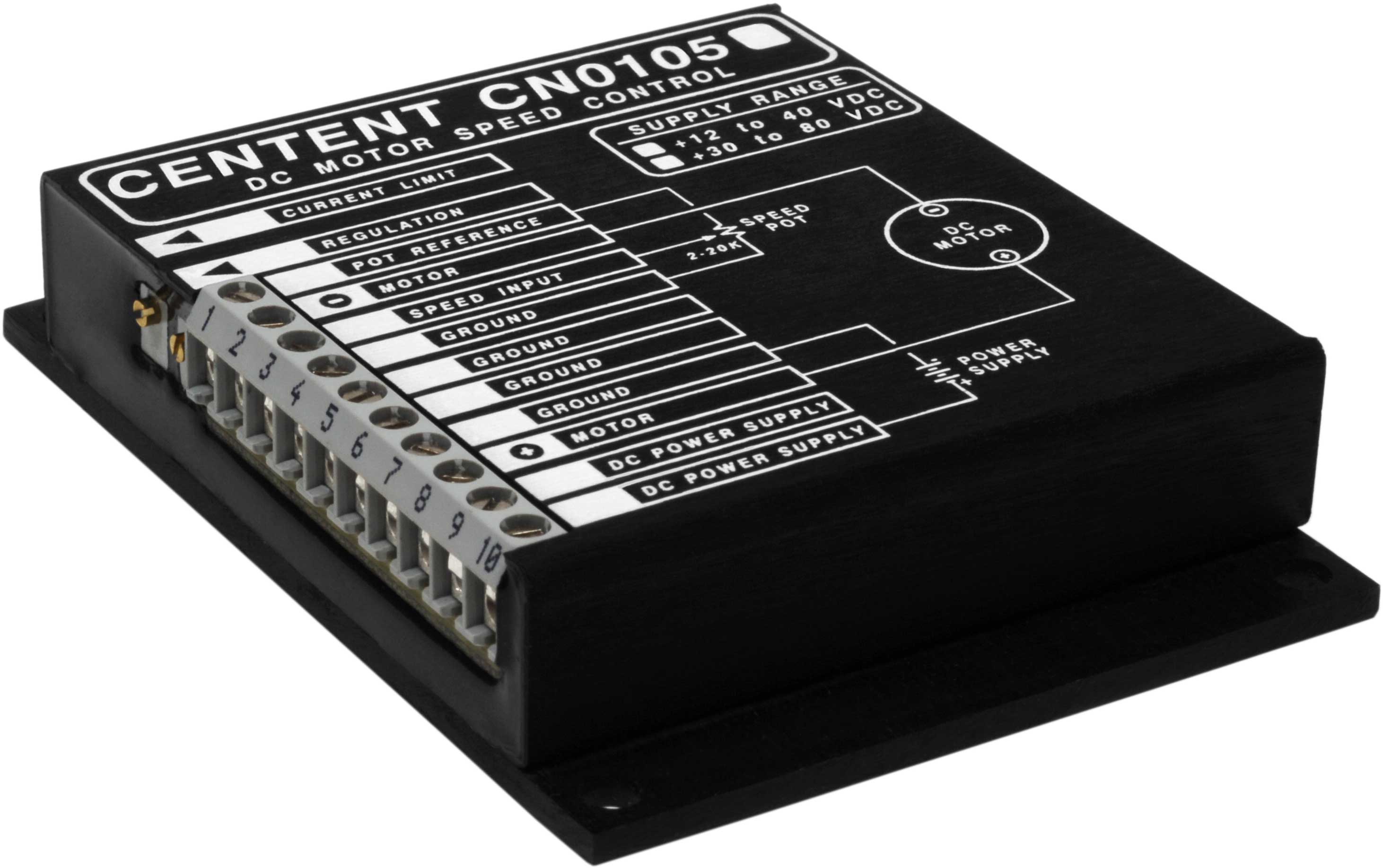

Large Drawing


Contact us about pricing.
