PWM Speed Control IR Compensated 10 Amps, 80 Volts |

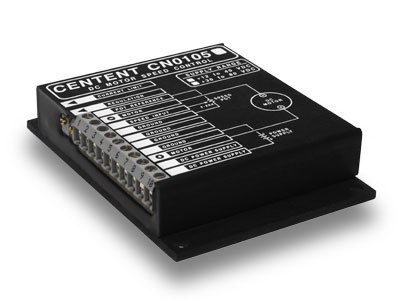

The CN0105 is a single quadrant (unidirectional) pulse width modulated speed control for permanent magnet DC motors. IR compensation is used for feedback control, for a speed control accuracy of +/- 2%.
Trimpots are provided for speed regulation and current limit adjustment. Current limit is adjustable over a 0 to 10 amp range. Motor speed can be set via an external potentiometer or a 0 to 5 VDC control voltage.
Robust circuit design and an epoxy encapsulated package contributes to a reliable and rugged DC motor speed control.
Operator's Manual ( PDF format 268K ) |
Specifications: | |
|
||
| Power Supply Voltage (A) | 12 VDC to 40 VDC | |
| Power Supply Voltage (B) | 30 VDC to 80 VDC | |
| Current | 0 to 10 Amps | |
| Switching Frequency | 15 Khz | |
| Regulation | +/- 2% | |
| Power Dissipation | 30 Watts (max) | |
| Operating Temperature | -40 to 70 Deg C | |
| Weight | 12 Oz | |
| Size | 4" X 3" X .8" | |
|
||
 |
||
  |
